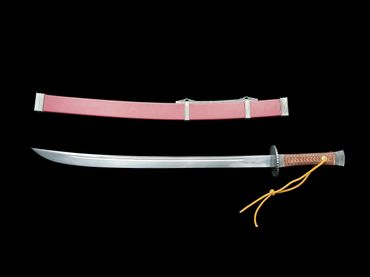

"TAI YANG" Yan Ling DAO 雁翎刀 (1661 - 1735 AD)

YAN LING DAO 雁翎刀

Yan Ling Dao marks a transition from traditional straight blade Chinese Dao to curve Dao.  The blade is mostly straight with a smooth curve towards the tip of the blade. Many original specimens came with an upper edge and 1-2 fullers.  Yan Ling Dao is suitable for both cavalry and infantry and was popular in late Ming and early Qing dynasty.


This chiseled and solid Yan Ling Dao is closely modeled after an unique 17th century specimen in Mr. Peter Dekker's private collection.   The rare sundial like hand guard gives the name of the sword "Tai Yang", which means the sun.  The fittings are cast iron and in the "Fang-Shi" or square style popular in the mid 17th century to early 18th century.  Subdue and refine, the "Fang-Shi" or square style is an endearing style of the time.

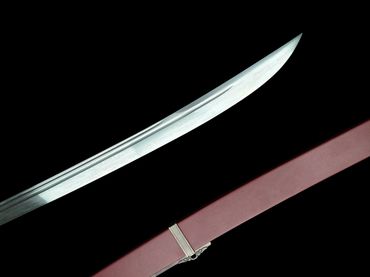

"Tai Yang" Yan Ling Dao has the most classic blade profile and is an excellent representation of this classic blade type.


Specifications

Sword only weight:  approx. 878 g (1 lb. 14.9 oz)

Blade length approx.         69.50 cm  (27.36")

Handle including fitting     18.00  cm  (7.08")

Total length                        87.00 cm  (34.25")

Point of Balance approx.     8.5 cm (3.35") from hand guard


Blade thickness

at base:                   8.50 mm

40 cm from base: 5.00 mm

5 cm from tip: 2.20 mm


Blade width

at base:                   33.5 mm

40 cm from base: 33.0 mm

50 cm from base: 35.0 mm

60 cm from base: 31.0 mm


Steel Option 1

Steel option 1

Labor intensive classic Sanmai (three plate) steel.

Hand folded pattern steel on the outside,

T10 steel in the core.

Clay clade differential tempering for hard edge.

Straight Hamon.


Steel Option 2
Folded pattern steel:

1065 carbon steel + T9 tungsten-vanadium high-speed tool steel.


1065 carbon steel

Element %

Carbon            0.55-0.660

Manganese     0.60-0.90

Phosphorus     <=0.040

Sulfur               <=0.050


T9 tungsten-vanadium high-speed tool steel.

Element %

Carbon            0.85-0.94

Silicon              <=0.35

Manganese     <=0.40

Phosphorus     <=0.035

Sulfur               <=0.030

Tungsten         <= 0.30

Vanadium       <= 0.02

Chromium       <=0.25

Nickel               <=0.20

Copper            <=0.25

Molybdenum  <= 0.20


Superior heat treatment:  Hardness 54-55 HRC.

Through spring tempering with oil quenching.

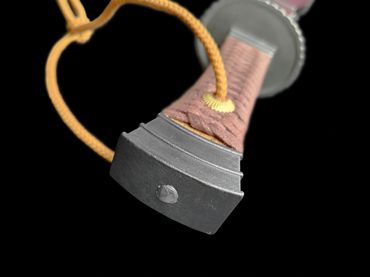

Pommel secured by traditional peening.

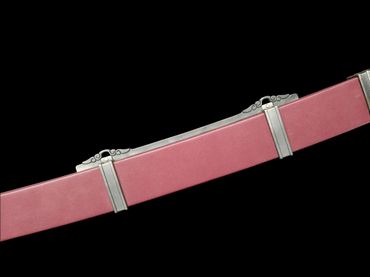

Scabbard

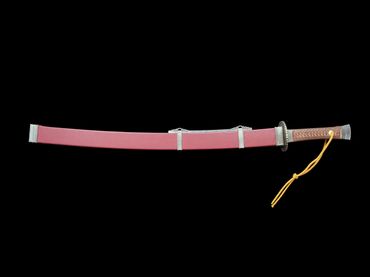

High quality white wood scabbard wrapping with microfiber vegan brown leather


"Fang Shi (Square style)" Iron Fittings

** In Ming and Qing  Dynasty, military Dao use Iron as the hand guard material

instead of brass, a softer metal. **

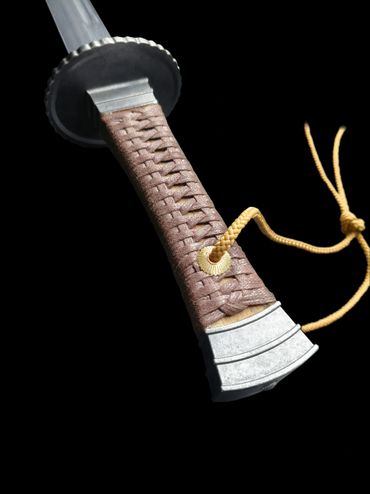

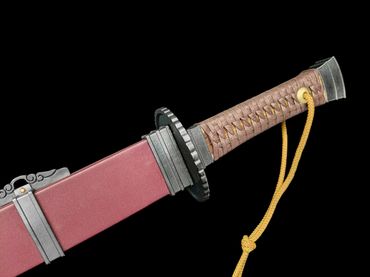

Hand guard, handle ferrule and pommel - Slightly blackened iron

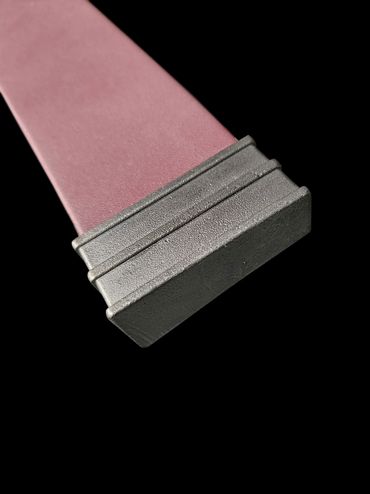

Scabbard fittings  - Slightly blackened iron

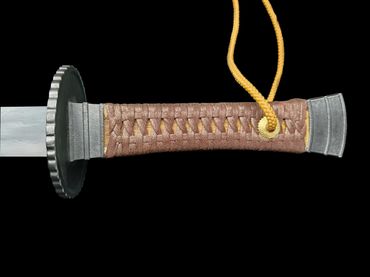

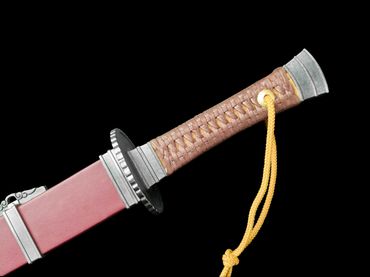

Flat brown cord wrapped handle.


Fit and finish

We perfected the fit and finish of our swords and the assembly is meticulously performed by our senior craft masters.  It takes one whole working day for a craftsman to assemble our swords.

Order Yan Ling Dao

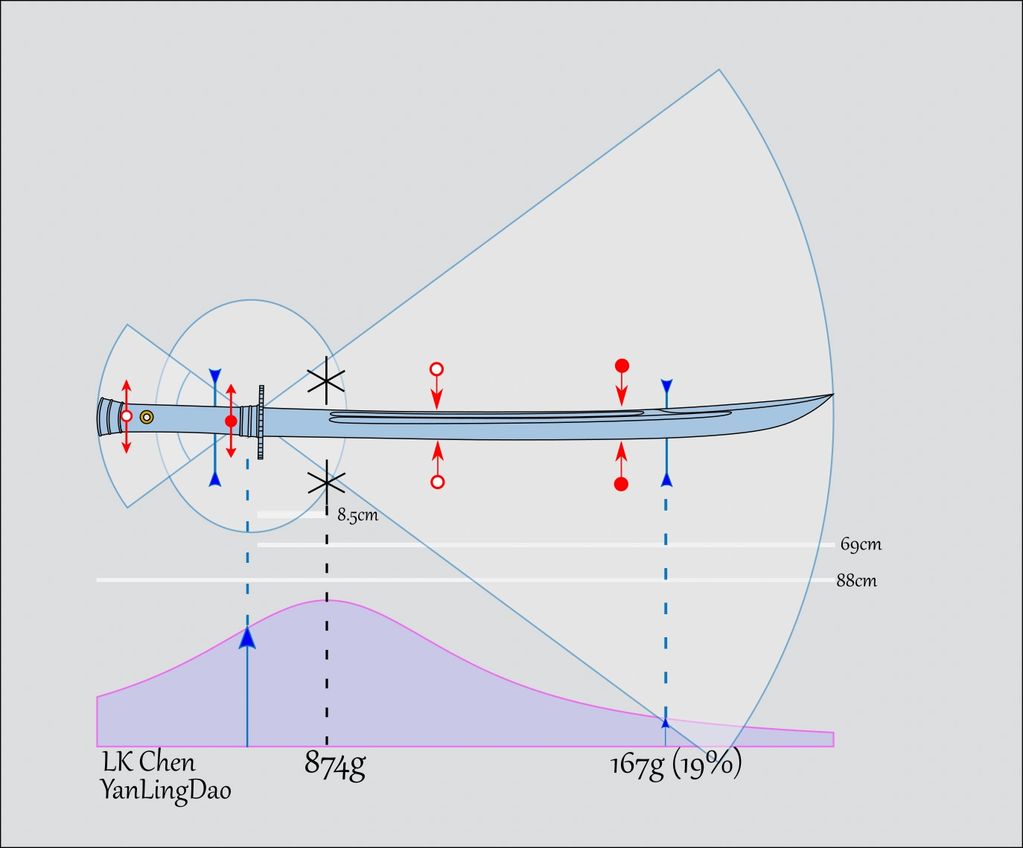

Sword dynamics GRAPH of a TYPICAL Yan Ling Dao

Sword Dynamics is first conceived by Peter Johnsson to objectively record the dynamics properties of medieval swords he encountered.


To learn how to interpret the Sword Dynamics Graph, click here!


Sword Dynamics was implemented by applied mathematician Dr. Vincent Le Chevalier as a free Weapons Dynamics Computer.


To learn how to measure basic data for the Weapons Dynamics Computer click here!





Show More

Yan Ling Dao - Single and Double Sabers

Instructor Jeremy Thomas -  6 Methods Martial Arts & Swordsmanship Academy

Yan Ling Dao (Pattern Steel)

Yan Ling Dao (Wrapped Steel)

Show More

Swift as Wind - Classic Chinese Martial Arts Dao techniques

Sifu Thomas Fuhr of Chan Family Choy Lee Fut San Diego performs Seven Star Single Hand Saber techniques

"TAI YANG" YAN LING DAO 雁翎刀 (1600 - 1650 AD)

Double Yan Ling Dao

Sifu Jeremy Thomas performs amazing cuts and control with double Yan Ling Dao

YAN LING DAO TEST CUTTING

Yan Ling Dao Hilt Assembly Process

Check out this great video

YAN LING DAO ANALYSIS AND REVIEW

YAN LING DAO REVIEW

Scholar General review LK Chen Yan Ling Dao

YAN LING DAO 雁翎刀 Review

Sifu Jeremy Thomas of  Joplin Pak Mei Athletic Association reviews the Yan Ling Dao

YAN LING DAO 雁翎刀 A Consumer's Review

Jon and Vic from the Unsheathed Sword Reviews offers a consumer's perspective of the LK Chen Yan Ling Dao

YAN LING DAO FIRST IMPRESSION

Sifu Kuttel's first impressions of the LK Chen Yan Ling Dao

17th Century Yan LIng Dao - PRIVATE COLLECTION of MR. PETER DEKKER

INTERVIEW with Peter Dekker - EXPERT IN ANTIQUE ARMS

Mr. Dekker generously provided the original 17th Century Yan Ling Dao for our reference. Starting 14:18

送毛伯溫 - 明嘉靖帝 朱厚熜

大將南征膽氣豪,

腰橫秋水雁翎刀,

風吹鼉鼓山河動,

電閃旌旗日月高。

天上麒麟原有種,

穴中螻蟻豈能逃,

太平待詔歸來日,

朕與先生解戰袍。


To General Mao Ba Wen

Jia Jing Emperor


Commanding general, full of brave,
marshaling his troops heading south.

His Yan Ling Dao, bright like

shimmering water in the fall,

hang from his waist.

The wind carries the roar of the drum beat,
shaken the mountains and rivers.

Lighting flashes on the flustering flags,
so tall that reaches the sun and the moon.

Our warriors inherited
the brilliance of Kirin from heaven.

Our adversaries hiding like ants in dens,
how can they possibly escape ?

When peace restores and the general returns.

I will be there to greet you sir,
to untie the burden of your battle robe.


Copyright © 2023 LK Chen

Time machine in your hanD ™

lkchensword@gmail.com

Powered by

Cookie Policy

This website uses cookies. By continuing to use this site, you accept our use of cookies.

Accept & Close
