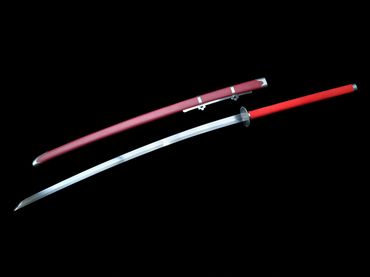

MING Imperial GUARD's Chang Dao 明御林軍長刀 (1368-1644 AD)

Ming Imperial Guard's Chang Dao 明御林軍長刀

During the Ming Dynasty, there was a substantial trading between China and Japan with contracted import of swords. Together with the warfare along coastal provinces against the Wokou (Japanese Invaders), Japanese swords had great influence in Chinese military weapons at the time.  The Chang Dao (Long Saber) also known as Dan Dao (Single/Sole saber) was the Chinese adaptation of the Japanese Long Sabers.


Imperial Guard Chang Dao is a formidable double hand sword as tall as warrior who weld it. These expansively made swords were provided to the imperial guards and for a time served as a stand by weapon for the musket units.


LK Chen's Imperial Guard Chang Dao is based a rare antique Chang Dao which had a blade/hilt  ratio with great leverage for powerful techniques.


Specifications

Sword only weight:  approx. 1952 g   (4 lb. 4.85 oz)

Blade length approx.          107.5 cm  (42.32")

Handle length approx.        55.0 cm   (21.65")

Total length  approx.           162.5. cm  (64.02")

POB from hilt approx.:        10.5 cm       (4.13")



With its optimal blade/handle ratio, the Imperial Guard's Chang Dao

is well balanced and feel lively in hand.

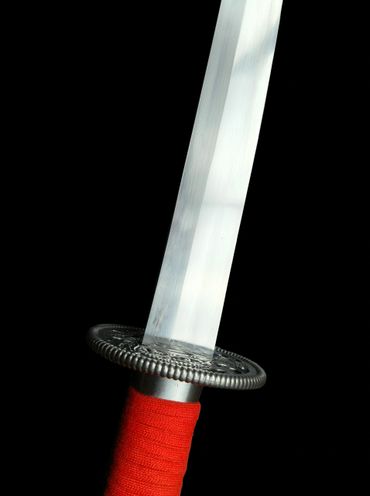

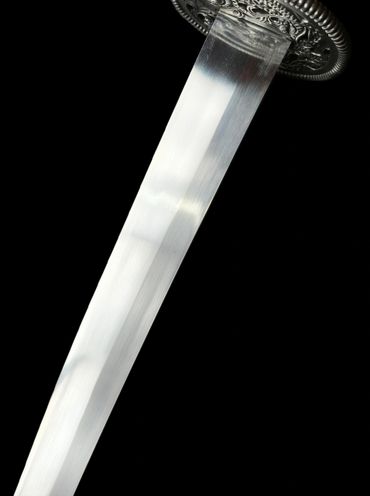

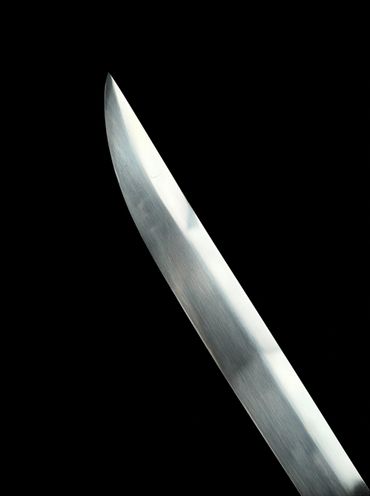

Blade thickness

at base:                   8.30 mm

near tip:                   3.5mm


Blade width

at base:                   40.0 mm

near tip:                   26.0 mm


Steel option 1

Folded pattern steel:

1065 carbon steel + T9 tungsten-vanadium high-speed tool steel.


1065 carbon steel

Element %

Carbon            0.55-0.660

Manganese     0.60-0.90

Phosphorus     <=0.040

Sulfur               <=0.050


T9 tungsten-vanadium high-speed tool steel.

Element %

Carbon            0.85-0.94

Silicon              <=0.35

Manganese     <=0.40

Phosphorus     <=0.035

Sulfur               <=0.030

Tungsten         <= 0.30

Vanadium       <= 0.02

Chromium       <=0.25

Nickel               <=0.20

Copper            <=0.25

Molybdenum  <= 0.20


Steel option 2

 GB 60Si2MnA High Carbon Manganese Spring Steel

(Comparable to AISI/SAE 5160 spring steel)

Element %       60Si2MnA    AISI/SAE 5160

Carbon            0.56-0.64      0.56-0.61

Silicon              1.60-2.00       0.15-0.35

Manganese     0.60-0.90      0.75-1.00

Phosphorus     <=0.030        <=0.035

Sulfur               <=0.030        <=0.040

Chromium       <=0.35          0.70-0.90

Nickel               <=0.35          <=0.25


Superior heat treatment:  Hardness 54-55 HRC.

Through spring tempering with oil quenching.


Fittings


** In Ming and Qing  Dynasty, military Dao use Iron as the hand guard material

instead of brass, a softer metal. **

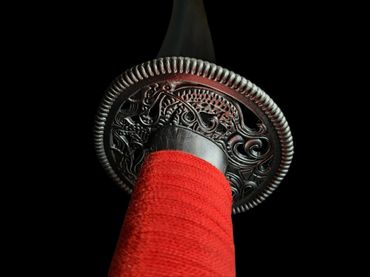

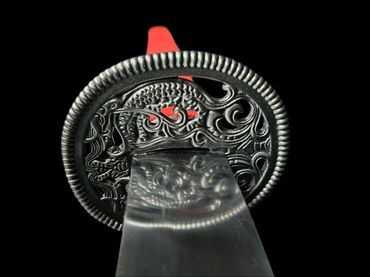

Iron Dragon motif open metal work hand guard, 1:1 recreation of a Ming Dynasty specimen.

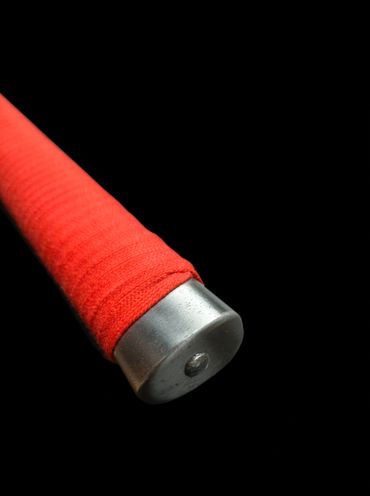

Iron hilt ferrule and pommel

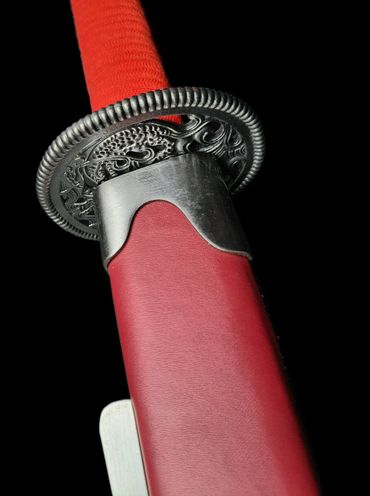

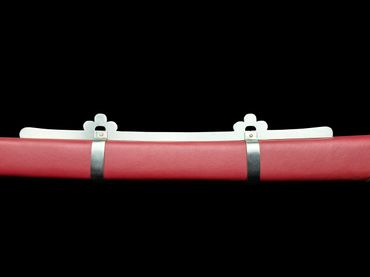

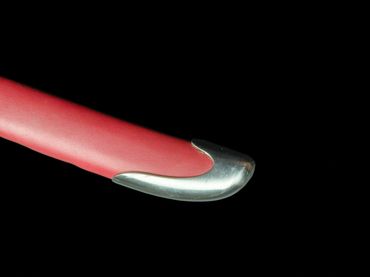

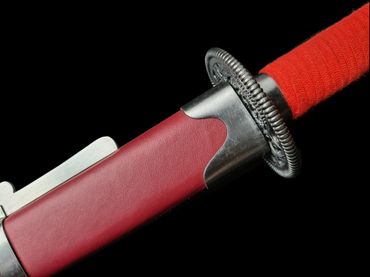

Scabbard fittings  - Cast stainless steel

Pommel secured by peening.

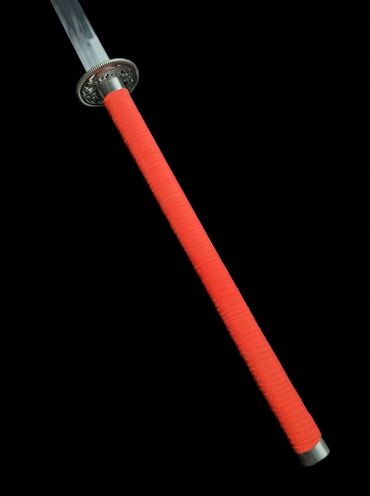

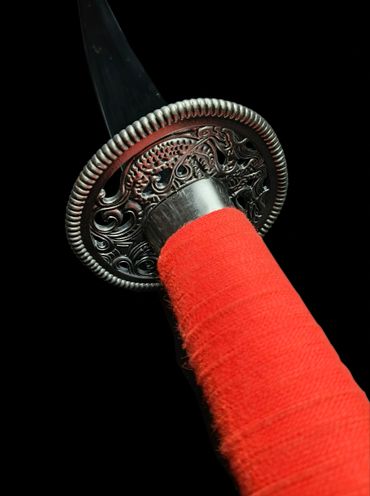

Red cotton cord wrapped handle model after the intact hilt wrapping of a Ming Dynasty Imperial Guard's Dao

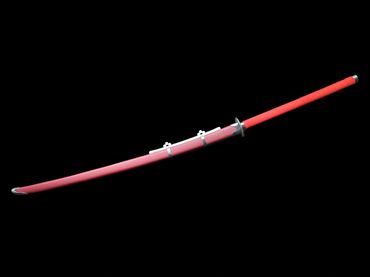

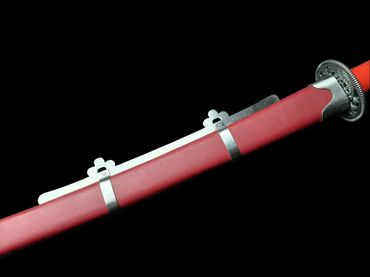

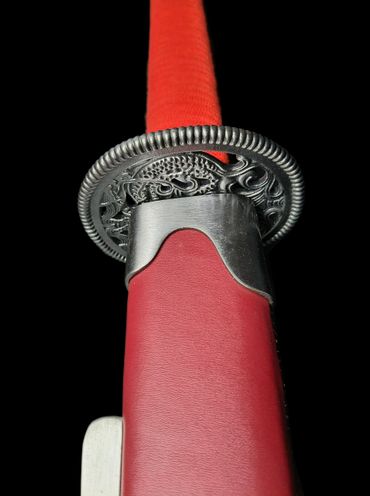

Scabbard made with wood core wrapped with wine read microfiber faux leather and cast stainless steel fittings


Fit and finish

We perfected the fit and finish of our swords and the assembly is meticulously performed by our senior craft masters.  It takes one whole working day for a craftsman to assemble our swords.

Order Ming Imperial Guard's Chang Dao

Sword dynamics GRAPH of a TYPICAL IMPERIAL GUARD CHANG DAO

Sword Dynamics is first conceived by Peter Johnsson to objectively record the dynamics properties of medieval swords he encountered.


To learn how to interpret the Sword Dynamics Graph, click here!


Sword Dynamics was implemented by applied mathematician Dr. Vincent Le Chevalier as a free Weapons Dynamics Computer.


To learn how to measure basic data for the Weapons Dynamics Computer click here!





Show More

Full tang construction

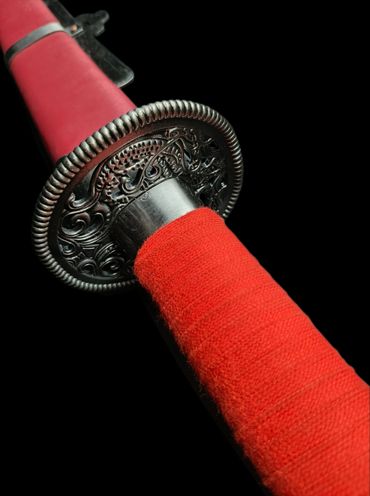

Ming dynasty open metal raise relief Double Dragon hand guard

Scholar General discuss the History of Ming Chang Dao

Ming Chang Dao Form Demonstration and Cutting

Sifu Thomas Fuhr, San Diego California

MING LONG SABERS



MING IMPERIAL GUARD's CHANG DAO TESTING

Trying out Ming Saber techniques

7 Mats Row Cut Challenge

Seven mats row cut challenge with four LK Chen double handed sabers

Ming Imperial Guard Chang Dao cutting - Omaha Kung Fu Academ

Instructor and students test cutting with Ming Chang Dao

Antique Ming Long Saber

Show More
