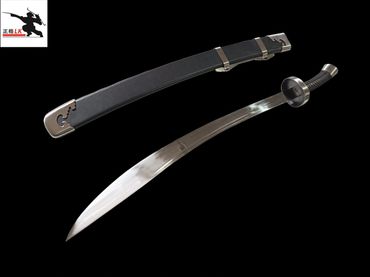

NEW Niu-Wei Dao

Niu Wei DAo 牛尾刀 1800 - 1920 AD

Niu Wei Dao 牛尾刀

Niu Wei Dao 牛尾刀 or "oxtail saber"  originated in civilian circles sometime in the 19th century.   They are characterized by having relatively thin blades that flare out near the tip, where they have a rounder cutting section than other Chinese saber types. The blade has a beautiful sweeping upward curve with a handle that curve downwards. This design is optimized for cutting soft targets, reflected the disappearance of armor on Chinese battlefield when firearms became more widespread.  Niu Wei Dao is versatile, impressive looking and gain widespread use among local militia, security police, body guards and martial artists.  This late Qing Dynasty design have made it known as the archetypical Chinese saber.

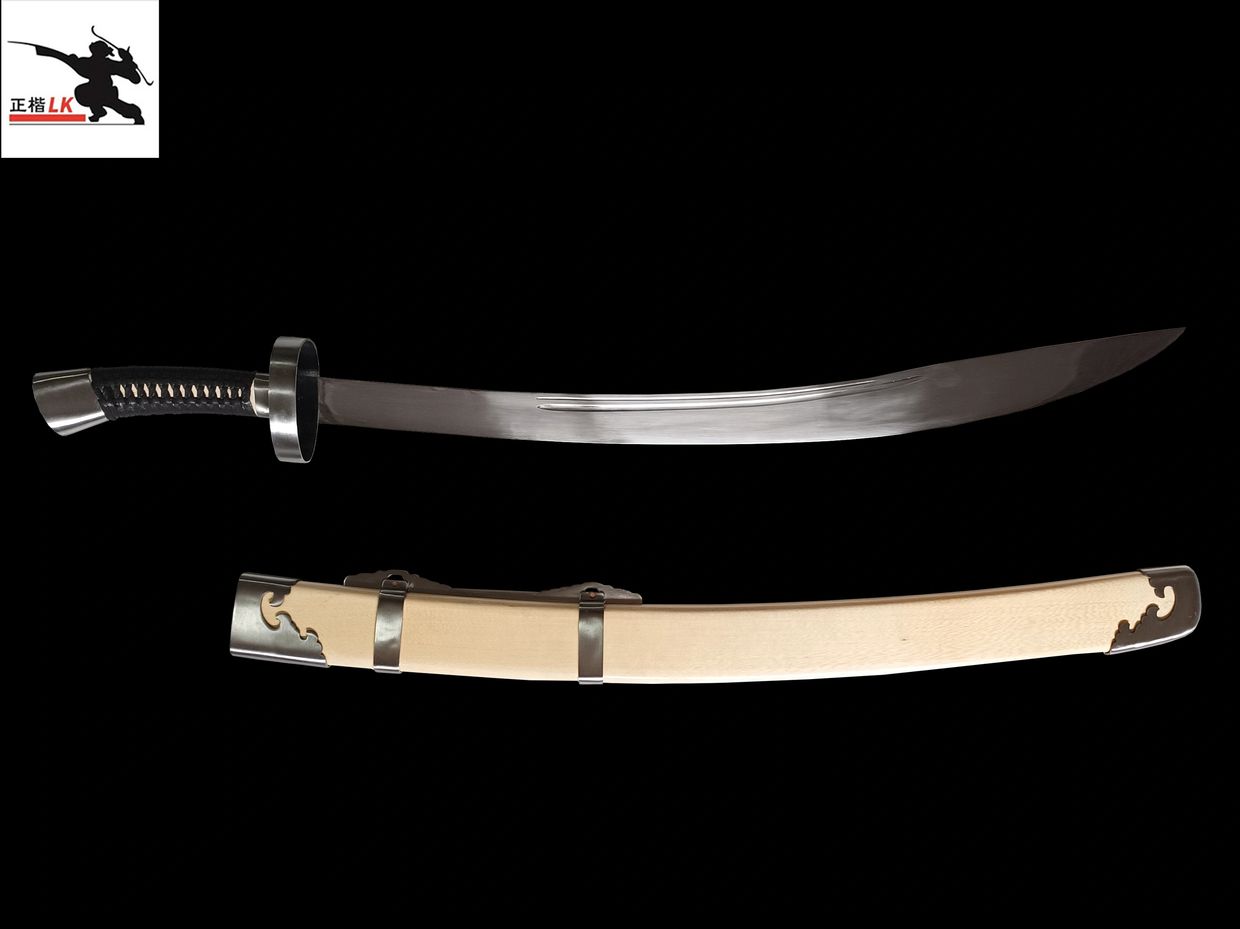

This Niu Wei Dao is an exacting replica of a well preserved Qing Dynasty Niu Wei Dao.


Specifications

Sword only weight:  approx. 914 g (2 lb oz)

Blade length approx.         76.4 cm  (30")

Handle including fitting     18.0  cm  (7.0")

Handle wood grip part      12    cm  (4.7)

Point of Balance approx.   13 cm (5.1") from hand guard


Blade Width  approx.

at hand guard:                     36.0 mm

19.1 cm  from hand guard:   37.8 mm

34.5 from handle:                 42.0 mm

18.5 cm from tip:                   53.0 mm


Blade thickness  approx.

at hand guard:                     5.00 mm

19.1 cm  from hand guard:   4.00 mm

34.5 cm from hand guard:   1.80 mm

18.5 cm from tip:                   1.40 mm


Steel option 1

Folded pattern steel:

1065 carbon steel + T9 tungsten-vanadium high-speed tool steel.


1065 carbon steel

Element %

Carbon            0.55-0.660

Manganese     0.60-0.90

Phosphorus     <=0.040

Sulfur               <=0.050


T9 tungsten-vanadium high-speed tool steel.

Element %

Carbon            0.85-0.94

Silicon              <=0.35

Manganese     <=0.40

Phosphorus     <=0.035

Sulfur               <=0.030

Tungsten         <= 0.30

Vanadium       <= 0.02

Chromium       <=0.25

Nickel               <=0.20

Copper            <=0.25

Molybdenum  <= 0.20


Steel option 2
GB 60Si2MnA High Carbon Manganese Spring Steel

(Compare to AISI/SAE 5160 spring steel)

Element %       60Si2MnA    AISI/SAE 5160

Carbon            0.56-0.64      0.56-0.61

Silicon              1.60-2.00       0.15-0.35

Manganese     0.60-0.90      0.75-1.00

Phosphorus     <=0.030        <=0.035

Sulfur               <=0.030        <=0.040

Chromium       <=0.35          0.70-0.90

Nickel               <=0.35          <=0.25


Superior heat treatment:  Hardness 54-55 HRC.

Through spring tempering with oil quenching.

Blade rebounds to true after bending,

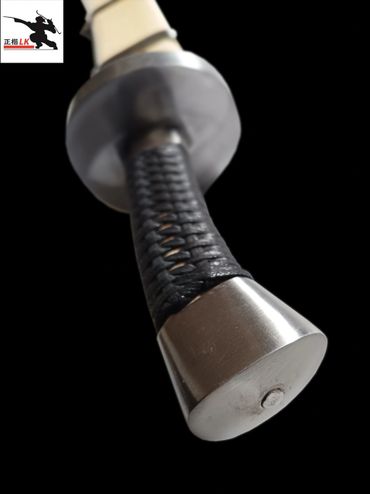

Pommel secured by peening.

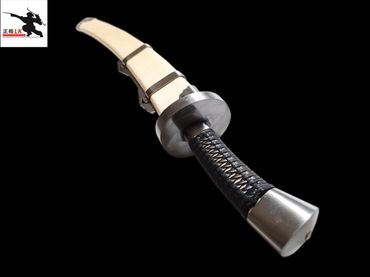

Fittings

** In Ming and Qing  Dynasty, combat Dao use Iron as the hand guard material

instead of brass, a softer metal. **

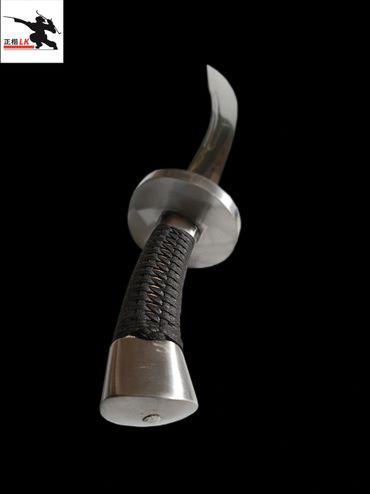

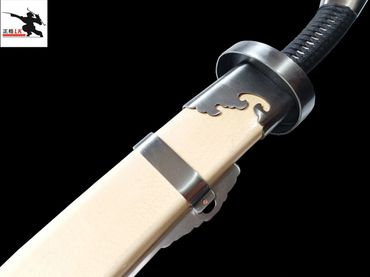

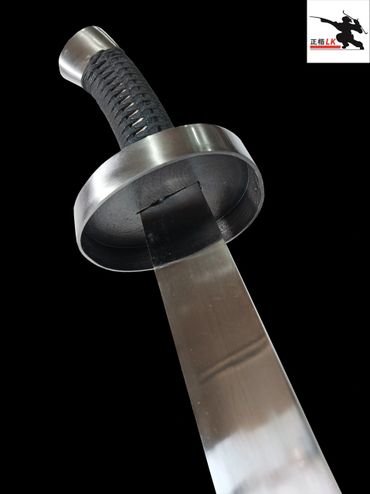

Hand guard, handle ferrule and pommel - cast stainless steel

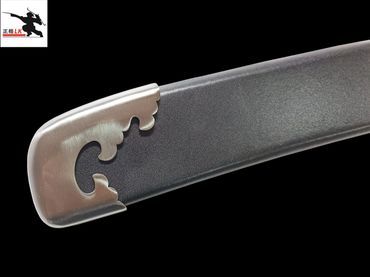

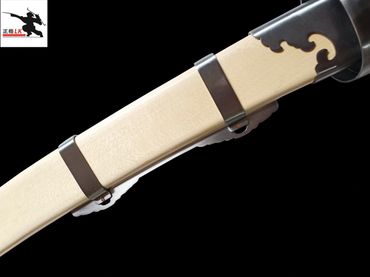

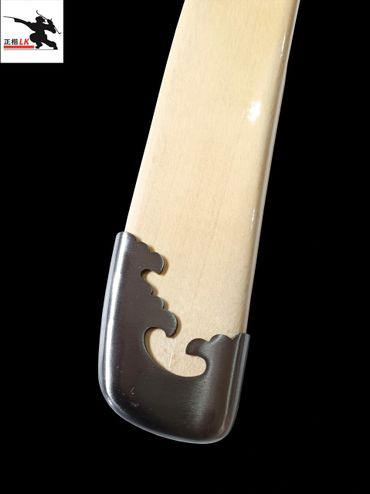

Scabbard fittings  - cast stainless steel

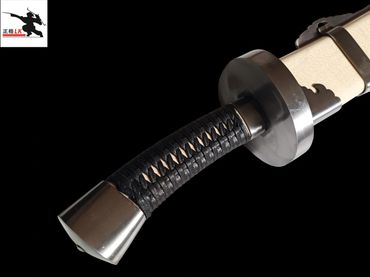

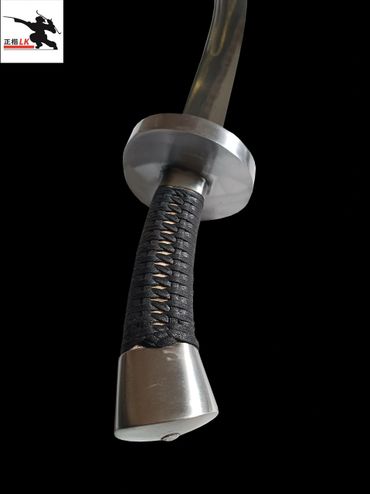

Flat black cord wrapped handle.

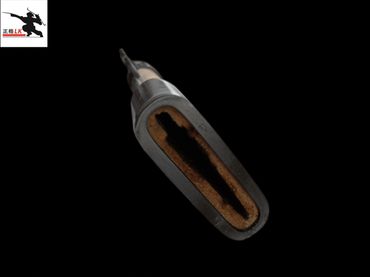

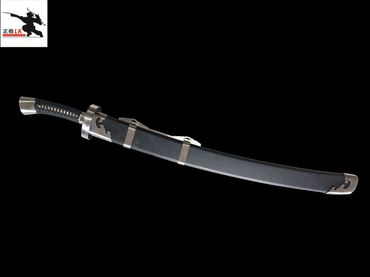

Scabbard

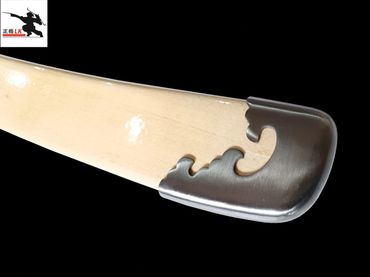

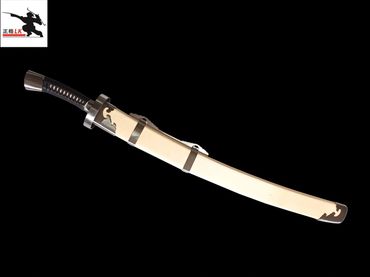

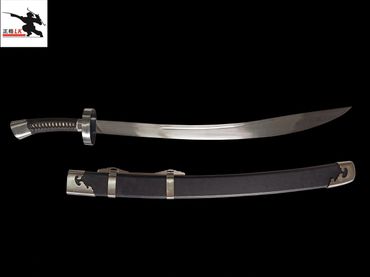

High quality white wood  scabbard or faux black leather wrap scabbard.


Fit and finish

We perfected the fit and finish of our swords and the assembly is meticulously performed by our senior craft masters.  It takes one whole working day for a craftsman to assemble our swords.

Order NIU wei dao

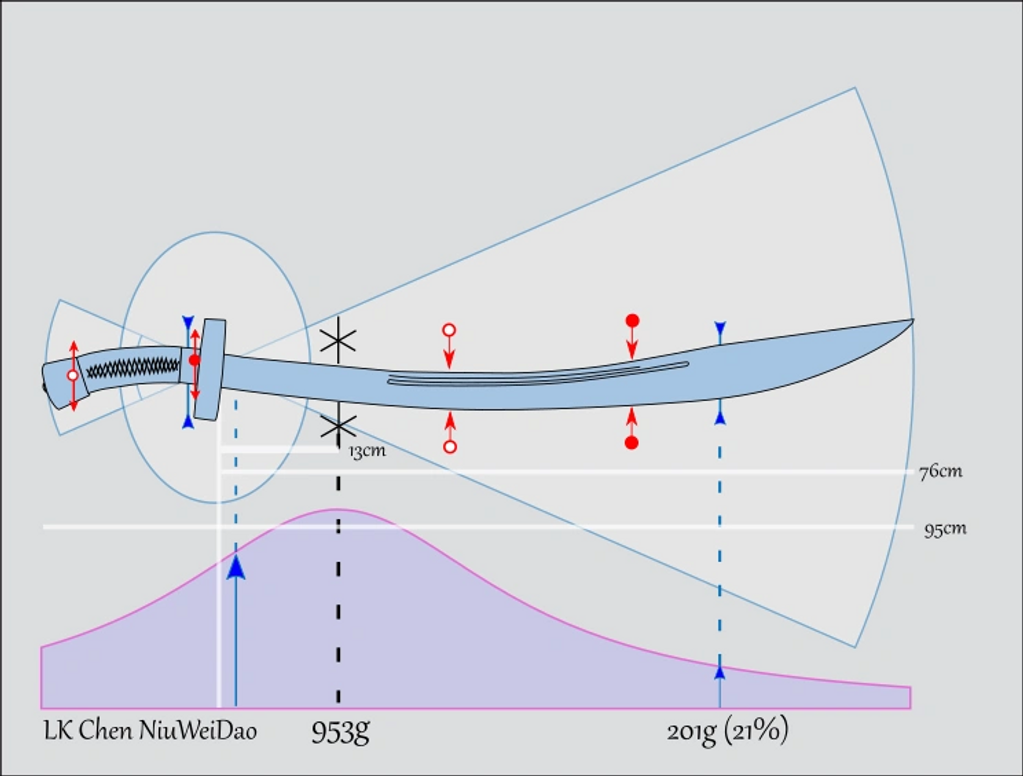

Sword dynamics GRAPH of a TYPICAL Niu Wei Dao

Sword Dynamics is first conceived by Peter Johnsson to objectively record the dynamics properties of medieval swords he encountered.


To learn how to interpret the Sword Dynamics Graph, click here!


Sword Dynamics was implemented by applied mathematician Dr. Vincent Le Chevalier as a free Weapons Dynamics Computer.


To learn how to measure basic data for the Weapons Dynamics Computer click here!





Show More

NIU WEI DAO 牛尾刀

Classic Chinese Niu-Wei Dao techniques

Sifu Thomas Fuhr of Chan family Choy Lee Fut Performing form and cutting with Nui Wei Dao

NIU WEI DAO TEST CUTTING

Philip Martin of Phoenix Society test cutting with LK Chen Niu Wei Dao

Recreation of an impressive Qing Dynasty Niu Wei Dao

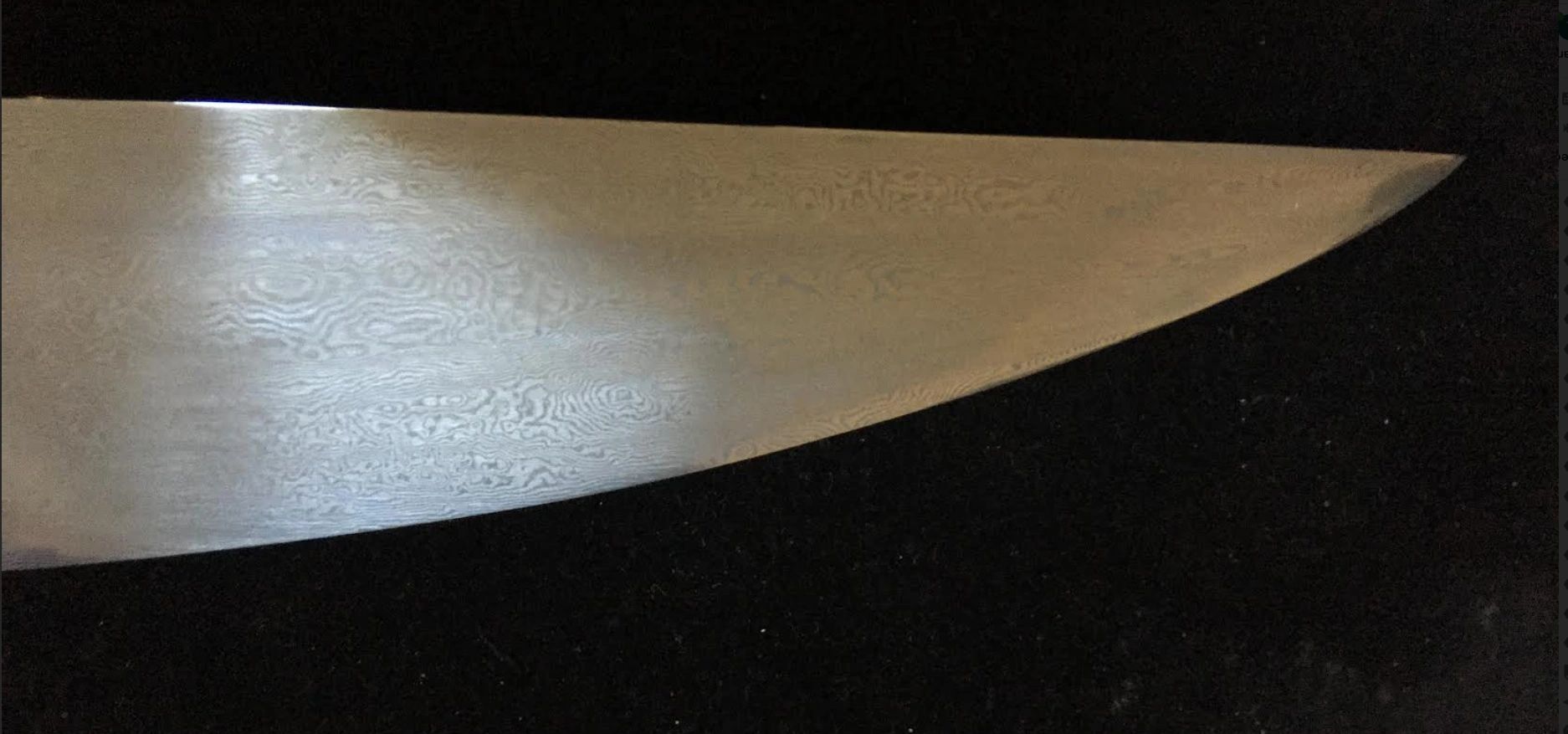

PATTERN STEEL BLADE

Niu Wei Dao review

NIU WEI DAO

Plum Blossom Sifu Kuttel with his Niu Wei Dao

DOUBLE SABERS TECHNIQUES

Pak Mei Sifu Jeremy Thomas demonstrates Double sabers techniques

What is a Chinese Broadsword?

recreating an impressive Qing Dynasty Niu Wei Dao 牛尾刀

Show More
