ITALIAN RING FINGER GUARD SWORD from THE ALEXANDRIA ARSENAL

Original model for Ribaldo


Ring Finger Guard sword.  Oakshott type XIX. Italian, before 1432. Private collection on loan to New York Metropolitan museum for exhibition since 2018.



Disk pommel, finger hook hand guard and the ricasso.

Close up view of the finger hook hand guard and ricasso with Arabic inscription.

Sotheby's 1979 Auction catalog photo

Sotheby's 1979 Auction catalog photo

Sotheby's 1979 Auction catalog photo

RIBALDO - 15TH CENT. ITALIAN SIDE SWORD OAKESHOTT TYPE XIX

Descriptions

Ribaldo is a recreation of a beautifully proportioned early 15th century Italian sword, one of over 170 bearing inscriptions from the Arsenal of Alexandria in Egypt. The original was sold by Sotheby's i 1979.  This sword is very similar to the one in the Royal Armory collection and likely forged by the same sword maker sometime before 1432.


"Ribaldo"  is the name of Italian skirmisher troops who would have used this sort of type XIX sword at early 15th century. In art the "Ribaldo" troops are often seen with light armor, a shield and a spear and with this type of arming sword.


The typology of this sword is Oakeshott XIX which was popular during the 15th century. The complex blade features a ricasso, flat hexagonal blade that change to lenticular shape at the tip.   This geometry make Ribaldo a capable cut and thrust arming sword.


The sword has a very early example of a guard for the forefinger, which was an early step in a series of developments that would lead into increasingly complex hilts of the later 15th century and beyond. By looping the forefinger over the unsharpened ricasso, a user would be better able to align the edge when cutting and also gain a more refined control of the tip. Having the finger in front of the cross-guard would leave it vulnerable on a simple cross-hilted sword, hence the development of the protective hook.


The recreation of this sword is a collaboration between LK Chen and Matt Easton, who offer much valuable guidance and advise, as well as providing the dimensions and specifications of the original Italian sword.


Specification


Approximations only, all measurements subject to slight variation for each swords

Minor adjustment can be made for the first production run


Total length: 109.8 cm (43.23")

Blade length: 93.4 cm (36.77")

Hilt length (handle only) : 10.5 cm (4.13")

Pommel length: 5.3 cm (2")


Total Weight: 970 grams (2 lb 2.2 oz)

Point of Balance (from hand guard): 20 cm (8.0")

Point of Percussion (from hand guard): 62 cm (24.4")


Blade width:

At hand guard: 3.95 cm (1.56")

At Point of Percussion: 3.3 cm  (1.30")


Blade thickness:

At hand guard: 5.25 mm

At Point of Percussion: 3.0 mm


Width of hand guard: 13.65 (5.34")


Handle width: 3.36 cm (1.32")

Handle thickness: 1.75 cm (0.7")


Pommel:

Length: 5.3 cm

Width: 5.1 cm

Thickness: 1.4 cm


Oakeshott Type XIX cross-section : see below


Steel  GB 60Si2MnA

High Carbon Manganese Spring Steel (Compare to AISI/SAE 5160 spring steel)   Element %       60Si2MnA    AISI/SAE 5160

Carbon            0.56-0.64      0.56-0.61

Silicon              1.60-2.00       0.15-0.35

Manganese     0.60-0.90      0.75-1.00

Phosphorus     <=0.030        <=0.035

Sulfur               <=0.030        <=0.040

Chromium       <=0.35          0.70-0.90

Nickel               <=0.35          <=0.25


Hardness 52-54 HRC.

Medium to Low firing and through quenching for hardness


Fittings

Hand guard and pommel:  Mild steel

Scabbard chape:  Brass

Handle wood: Ash

Handle wrap: Black top grain 0.8 mm thick leather,  with 2 raisers an pressed cord wrapped pattern

Scabbard: Ash

Scabbard wrap:  Oxblood Oiled-Waxed fine top grain leather


Order RIBALDO

OAKESHOTT TYPE XIX - four CROSS SECTIONs of the blade

At the forte, showing a ricasso of rectangular section with deep central fullers and deep outer grooves, plus incised lines.

At the point of balance, showing a flattened hexagonal section with a thin central fuller and 2 outer grooves.

At the center of percussion or striking point, c.60.9 from the forte, showing a flattened hexagonal section.

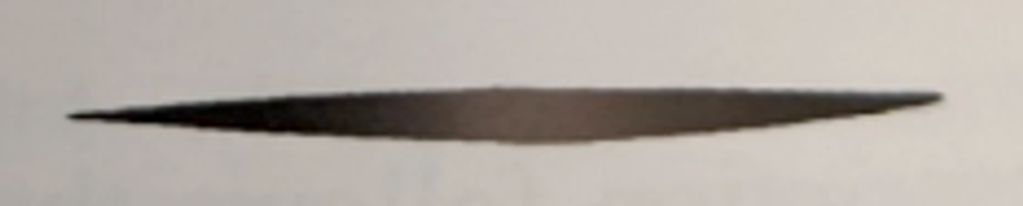

8 cm from the tip, showing a lenticular bladeform

Sword dynamics GRAPH of Ribaldo, An Early 15th century type XIX sword

Sword Dynamics is first conceived by Peter Johnsson to objectively record the dynamics properties of medieval swords he encountered.


To learn how to interpret the Sword Dynamics Graph, click here!


Sword Dynamics was implemented by applied mathematician Dr. Vincent Le Chevalier as a free Weapons Dynamics Computer.


To learn how to measure basic data for the Weapons Dynamics Computer click here!





Show More

RIBALDO - EARLY 15TH CENTURY ITALIAN SWORD

Show More

Ribaldo Milanese Arming Sword review

RIBALDO - AN EARLY-RENAISSANCE SIDESWORD

Sideswords and bucklers

Check out this great video

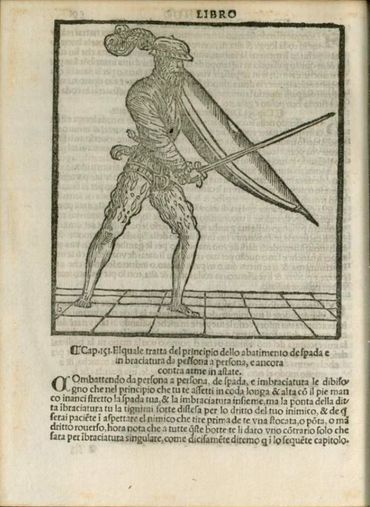

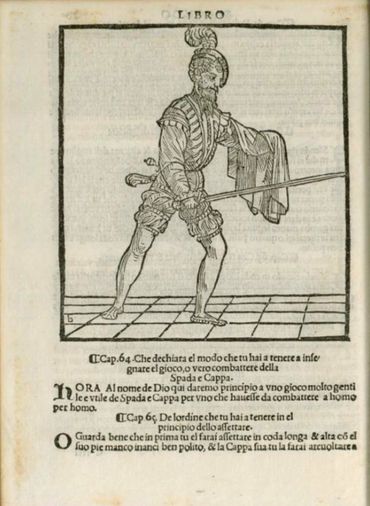

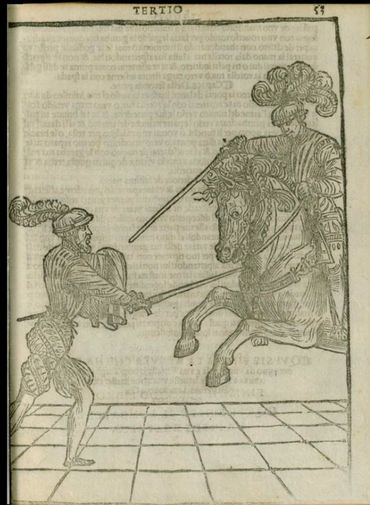

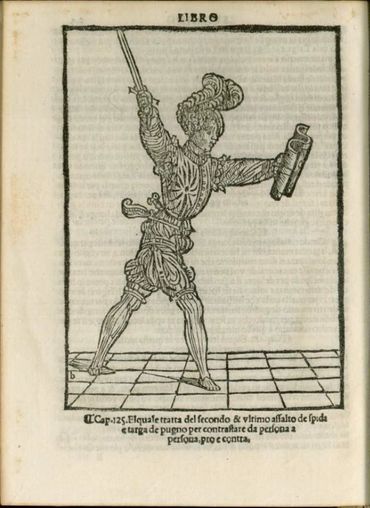

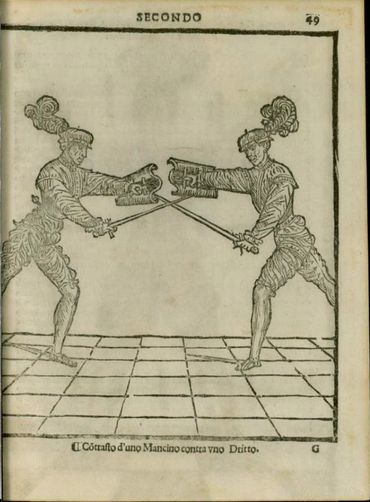

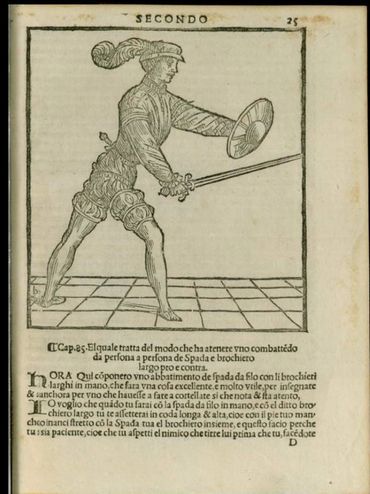

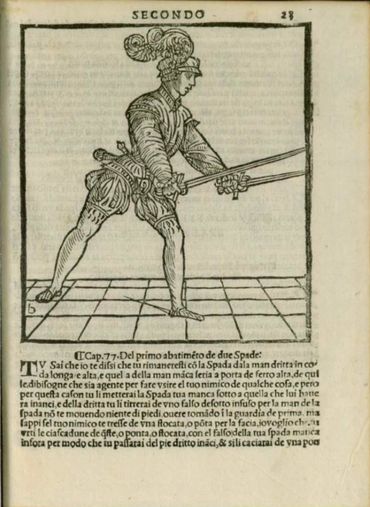

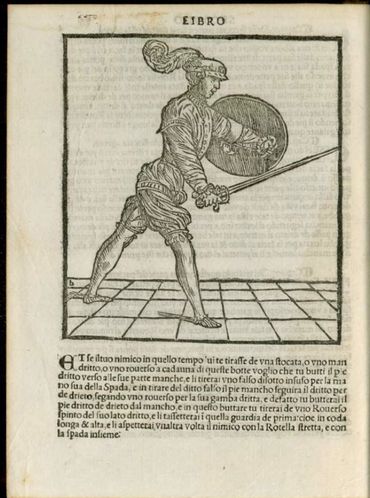

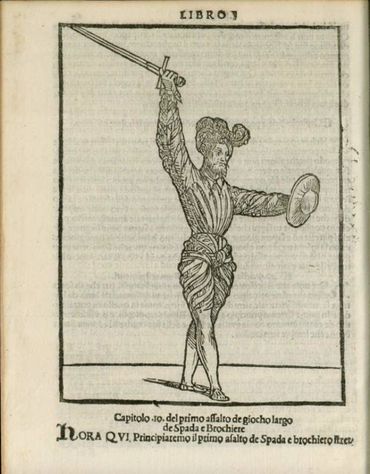

ITATLIAN SWORDSMANSHIP USING RING FINGER GUARD SWORD

RIBALDO - TATAMI CUTTING TEST

RIBALDO - AN EARLY 15th CenturY ITALIAN Sword

ONE RING FINGER GUARD DEPICT IN A 14th cENTURY MANUSCRIPT
